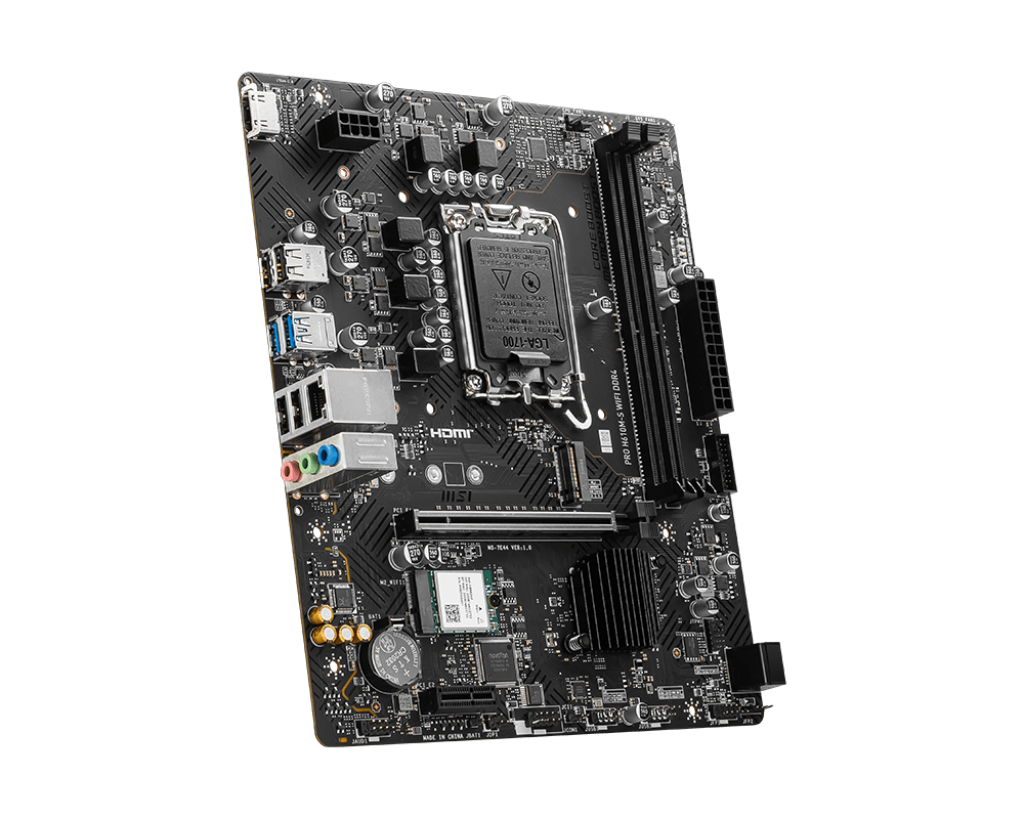

MSI PRO H610M-S WIFI DDR4 mATX Motherboard – Intel H610, LGA1700, Wi-Fi 6E

Full Description (Product Page)

The MSI PRO H610M-S WIFI DDR4 is a reliable micro-ATX motherboard tailored for modern Intel builds, offering essential features and expansion in a compact form. Designed for professionals, home users, and budget gamers alike, it balances connectivity, stability, and performance.

Key Features & Specifications:

• CPU Support: Compatible with Intel 14th / 13th / 12th Gen Core processors, as well as Intel Pentium Gold and Celeron CPUs, using the LGA 1700 socket. MSI+2DataBlitz+2

• Memory: Supports up to 64GB DDR4 in dual-channel via 2 DIMM slots. JEDEC speeds up to 3200 MHz. MSI+1

• Form Factor & Design: Micro-ATX (approx. 200 × 236.16 mm size) – compact enough for smaller cases but still offering solid expansion. 1stwave.co.nz+1

• Storage Options:
  • 1 × M.2 slot (PCIe 3.0 x4) compatible with 2280/2260/2242 devices. DataBlitz+2MSI+2
  • 2 × SATA 6Gb/s ports for traditional drives. DataBlitz+1

• Expansion Slots:
  • 1 × PCIe 4.0 ×16 slot (for graphics card etc.) DataBlitz+1
  • 1 × PCIe 3.0 ×1 slot for add-ons. DataBlitz+1

• Networking & Wireless: Built-in Wi-Fi 6E for fast wireless connectivity (depending on region / regulatory compliance). Also includes Bluetooth support. 1stwave.co.nz

• I/O & Audio:

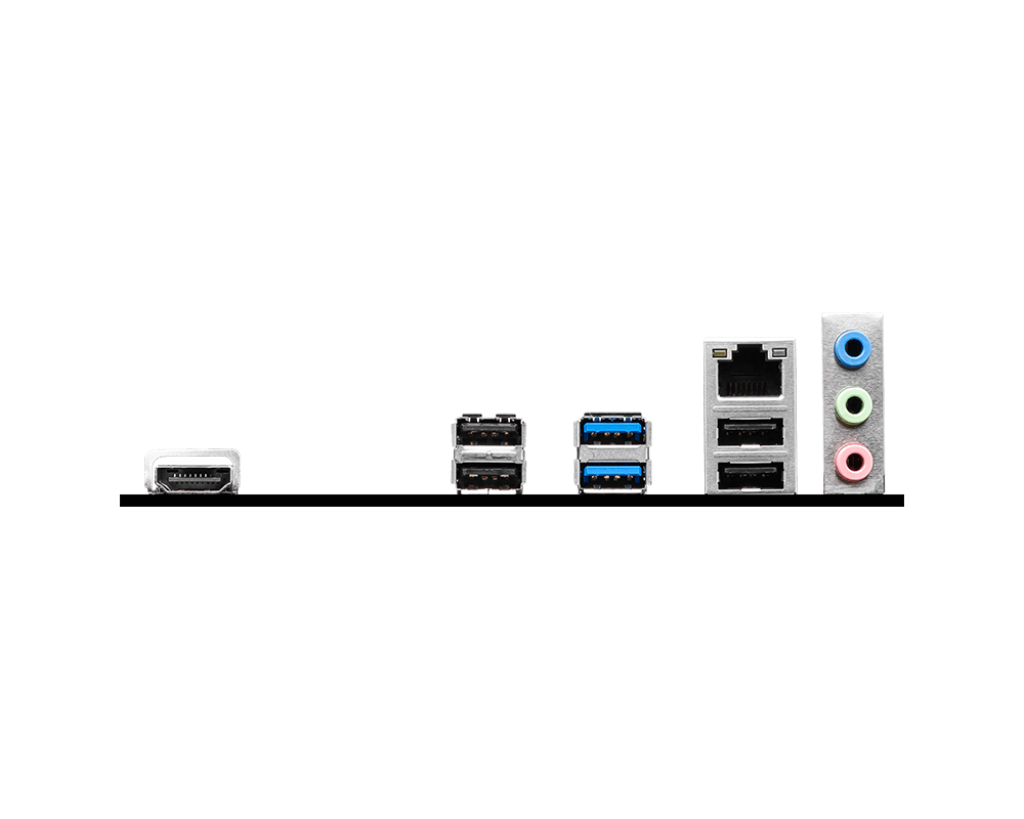

  • Rear ports include HDMI 1.4 (4K @ 30Hz with integrated graphics) and standard USB ports. DataBlitz+2MSI+2
  • Realtek ALC897 audio codec with support for up to 7.1-channel high definition sound. DataBlitz+1

• Other Features:
  • EZ Debug LEDs for easy troubleshooting. 1stwave.co.nz+1
  • TPM header, chassis fan connectors, front panel headers etc. DataBlitz

• OS Support: Windows 10 / Windows 11 (64-bit) compatible. DataBlitz+1
